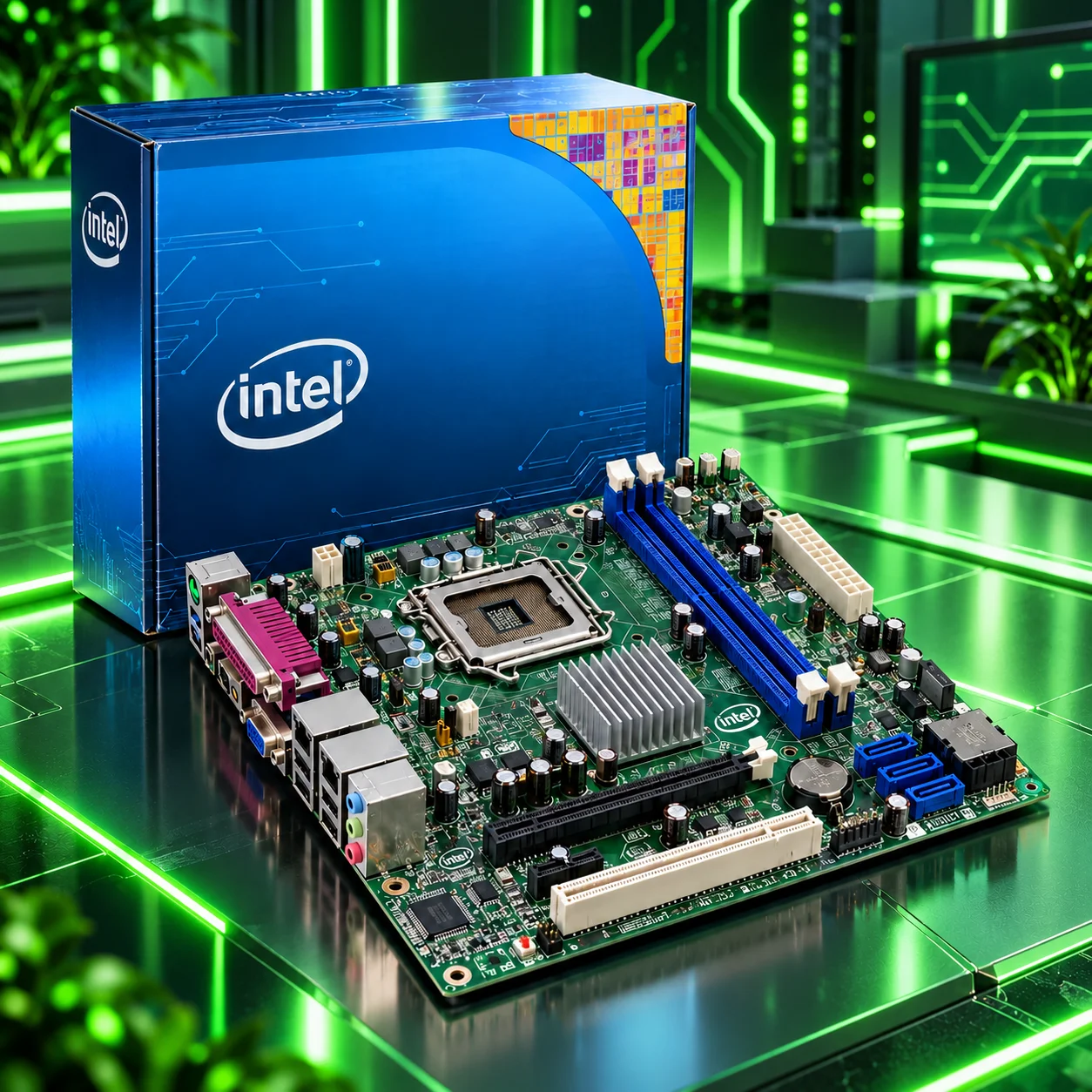

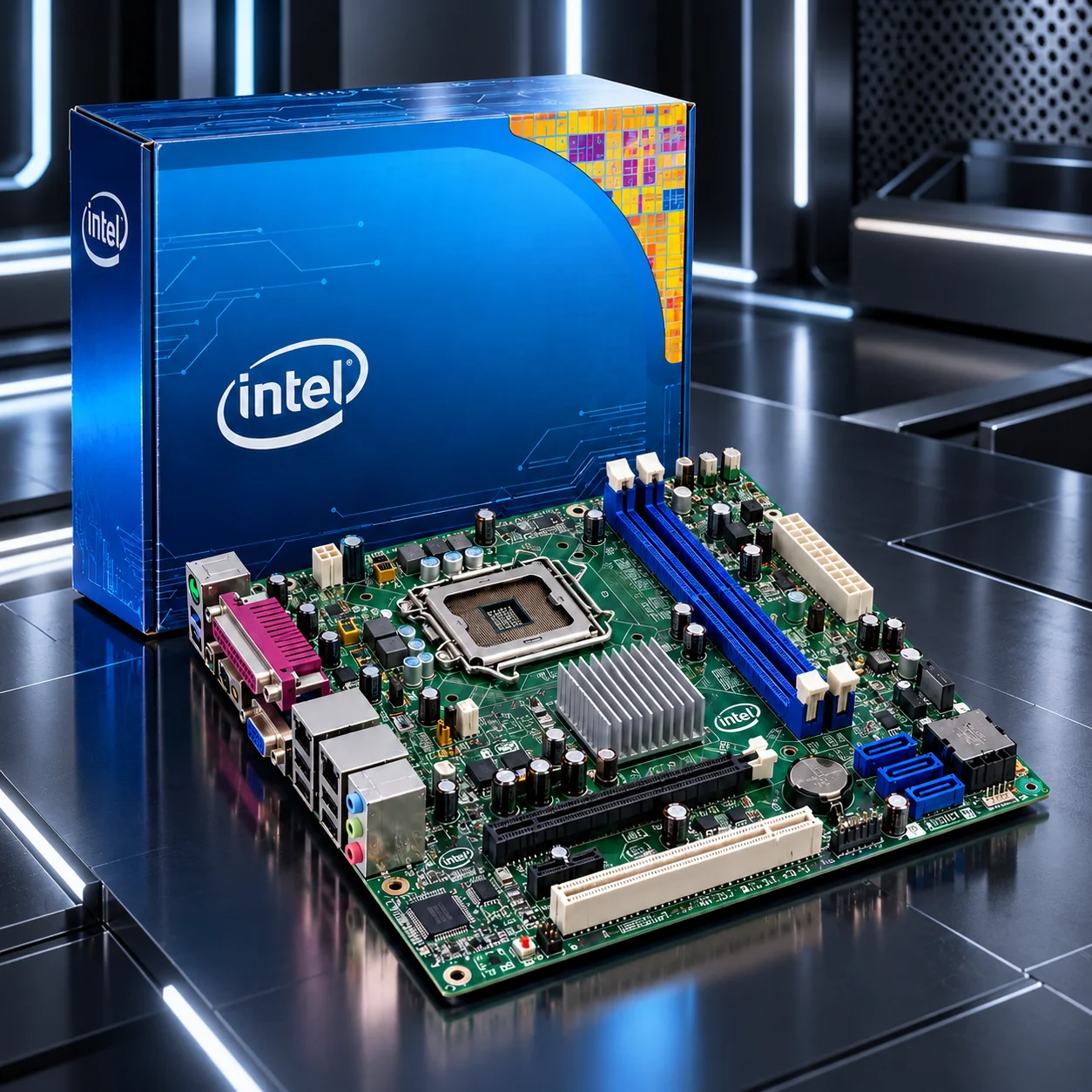

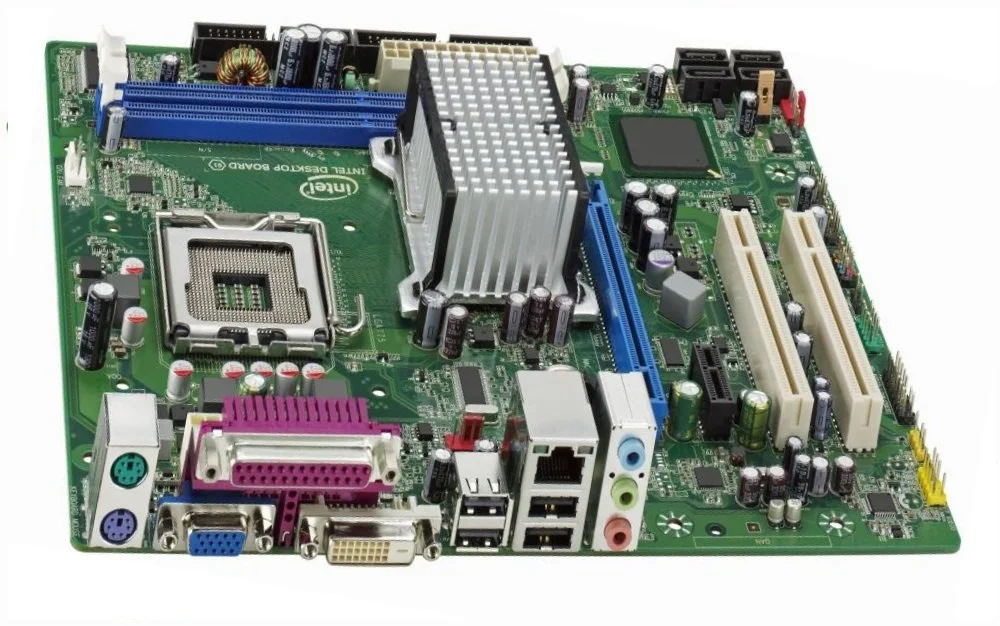

Intel Desktop Board DG41TY Classic Series Motherboard

Introduction & Market Context

Part of Intel's Classic Series motherboard lineup, the Intel DG41TY was engineered as a reliable, cost-effective workhorse for everyday desktop computing during the late lifecycle of the venerable LGA 775 socket. Designed to support Intel Core 2 Quad, Core 2 Duo, Pentium, and Celeron processors, this board brought balanced multimedia and office capabilities into budget-conscious builds. Sitting comfortably in the Micro-ATX segment, the DG41TY aimed at commercial workstations, educational computer labs, and entry-level home PCs requiring rock-solid stability rather than overclocking flair.

Architecture, Cores & Engineering

At the center of the platform lies the two-chip Intel architecture consisting of the Intel G41 Express Northbridge paired with the battle-tested Intel ICH7 Southbridge. The G41 chipset integrates the Intel Graphics Media Accelerator X4500 (GMA X4500), delivering built-in DirectX 10 hardware acceleration and smooth high-definition video playback without demanding a standalone graphics card. Power delivery is handled by a straightforward 3-phase VRM design, which is well-tailored for 65W and select 95W TDP LGA 775 CPUs running at factory clocks.

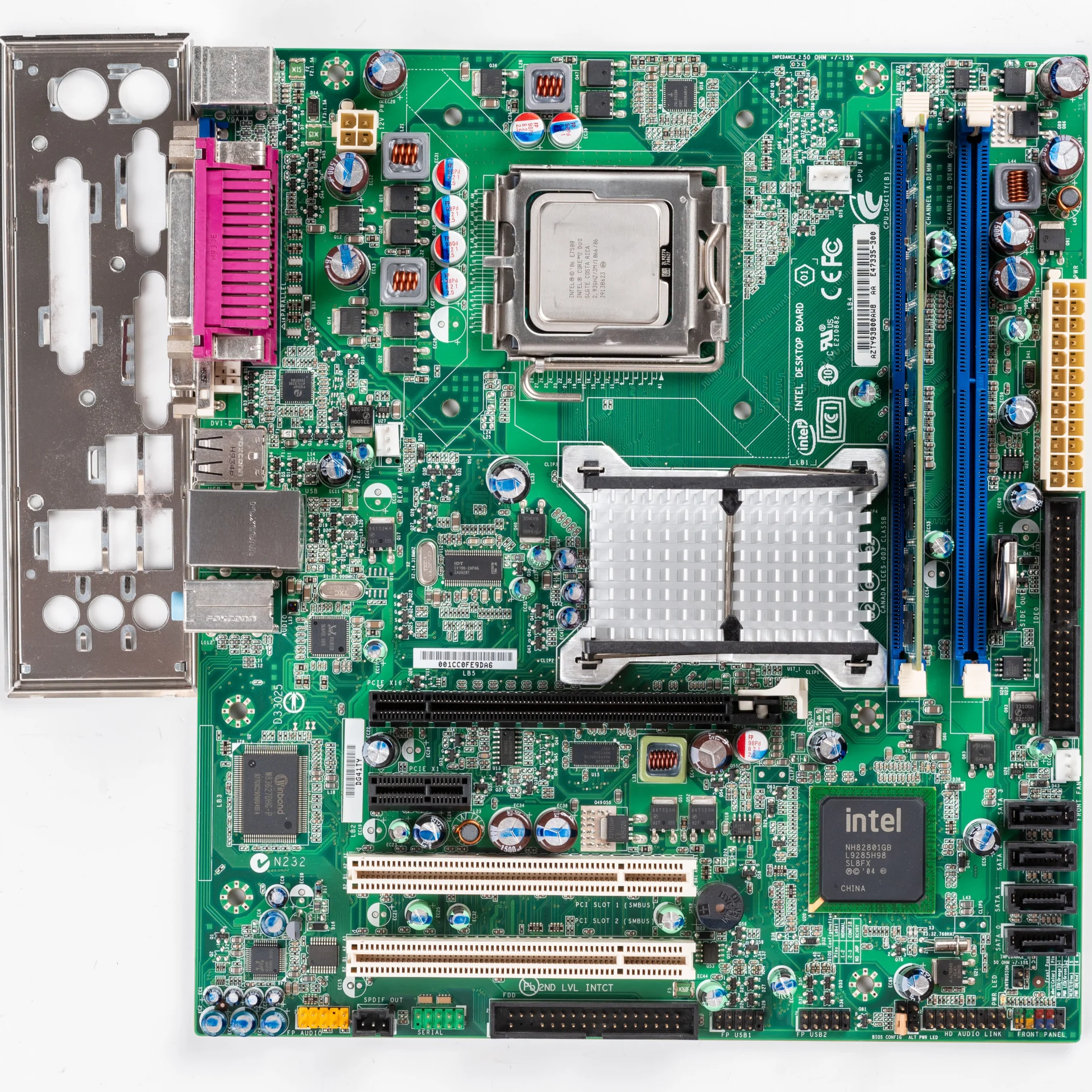

Memory layout is lean and practical: two 240-pin DDR2 DIMM slots support dual-channel configurations up to 8 GB of DDR2 800 MHz or 667 MHz system memory. Expansion provisions strike a careful balance between contemporary and legacy standards, offering one PCI Express 1.1 x16 slot for dedicated graphics upgrades, one PCIe 1.1 x1 slot for modern add-in cards, and two traditional 32-bit PCI slots for legacy capture or interface cards.

Real-World Performance & Daily Experience

In standard daily workflows, the Intel DG41TY delivers the no-nonsense responsiveness expected of an Intel reference design. The inclusion of both analog VGA and digital DVI-D video outputs allows users to configure dual-monitor setups straight out of the box, drastically enhancing productivity in administrative and multi-window work environments. Storage throughput on its four SATA 3Gb/s (SATA II) ports remains consistent for standard hard drives and SATA-based solid-state drives, while an integrated single IDE channel preserves compatibility with vintage optical drives and legacy storage media.

Networking is driven by a competent Realtek RTL8111D-GR Gigabit Ethernet controller, ensuring full-speed wired LAN transfers that outshine the standard Fast Ethernet typically found on budget boards of its era. Audio is routed through the Realtek ALC888VC codec, offering clean 5.1-channel high-definition audio with front-panel and internal S/PDIF connectivity.

Thermals, Power & Platform Longevity

Thanks to the power-efficient 65nm manufacturing process of the G41 chipset and the modest thermal envelope of the ICH7, the motherboard operates comfortably with simple extruded aluminum passive heatsinks. Even inside compact Micro-ATX enclosures with minimal airflow, Northbridge and Southbridge thermals remain well within operational tolerances. The 3-phase VRM runs efficiently under sustained daily computing workloads, though the lack of MOSFET heatsinks underscores that this board was engineered for standard operating frequencies rather than demanding power profiles.

For retro computing enthusiasts and industrial installations, the DG41TY holds notable longevity value. Internal headers for legacy Serial (COM) and Parallel (LPT) ports, paired with dual PCI slots and broad operating system support ranging from Windows XP up through modern lightweight Linux distributions, make it an exceptional maintenance platform for legacy software and specialized hardware interfaces.

Key Strengths & Trade-offs

• Pros: Rock-solid Intel reference stability with straightforward BIOS configuration.
• Pros: Dual video outputs (DVI-D and VGA) for multi-monitor setups without requiring a discrete GPU.
• Pros: Realtek Gigabit LAN onboard provides snappy, modern local network speeds.
• Pros: Excellent legacy device support with an IDE connector, COM header, LPT header, and two PCI slots.
• Cons: Limited to two DDR2 memory slots with a platform maximum of 8 GB.
• Cons: 3-phase power design is not suited for high-TDP 130W processors or aggressive CPU overclocking.
• Cons: ICH7 Southbridge lacks native RAID functionality and AHCI flexibility on select BIOS revisions.

Pixahunt Buying Verdict

The Intel DG41TY stands as a textbook example of purpose-driven, reliable engineering. While clearly an artifact of the DDR2 and LGA 775 computing era, its blend of Gigabit Ethernet, digital display outputs, and exhaustive legacy compatibility makes it a fantastic, dependable choice for retro desktop restorations, secondary terminal systems, and legacy hardware preservation.
