GIGABYTE GA-EP45-UD3R Motherboard

Introduction & Market Context

In the vibrant landscape of late 2000s PC hardware, where Intel's Core 2 series CPUs reigned supreme, the motherboard market was a battleground for performance and innovation. Amidst this, Gigabyte introduced the GA-EP45-UD3R, a board that quickly carved out a reputation as a formidable contender for enthusiasts and power users. Positioned squarely in the high-performance segment for the LGA 775 platform, this motherboard wasn't just another P45 offering; it was a statement of Gigabyte's commitment to durability, stability, and overclocking headroom, largely thanks to its pioneering Ultra Durable 3 technology. It targeted users building powerful gaming rigs or workstations who demanded rock-solid performance and the flexibility to push their hardware to its limits, all while leveraging the then-dominant DDR2 memory standard.

Architecture, Cores & Engineering

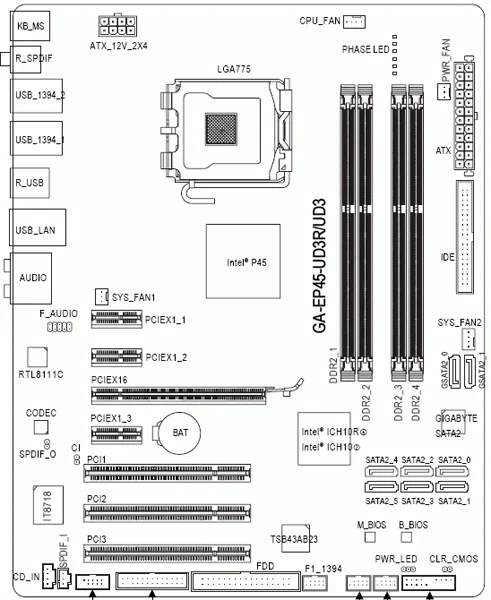

At the heart of the GA-EP45-UD3R lies the venerable Intel P45 Express chipset paired with the ICH10R southbridge, a combination lauded for its stability and strong overclocking capabilities. This ATX board (30.5cm x 24.4cm) supports the entire spectrum of LGA 775 processors, from the efficient Core 2 Duos to the powerful Core 2 Quads. Gigabyte's engineering prowess is immediately evident in the 6-phase power design, further enhanced by the groundbreaking Ultra Durable 3 Technology. This innovation incorporates a 2oz copper PCB, significantly improving power efficiency, reducing operating temperatures, and enhancing stability – crucial for demanding workloads and aggressive overclocking.

Memory support is robust for its generation, featuring four 1.8V DDR2 DIMM sockets capable of housing up to 16 GB of RAM. With dual-channel architecture, the board officially supports DDR2 speeds up to 1066 MHz, with impressive overclocking potential extending to DDR2 1200+ MHz, allowing users to extract maximum performance from their memory modules. For expansion, the GA-EP45-UD3R offers a comprehensive array: a primary PCI Express 2.0 x16 slot for high-end graphics cards, complemented by a secondary PCI Express 2.0 x8 slot (in a physical x16 form factor) for multi-GPU configurations or additional high-bandwidth devices. Three PCI Express x1 slots and two traditional PCI slots round out the expansion options, catering to a wide range of add-in cards.

Storage capabilities are generous, with six SATA 3Gb/s ports managed by the ICH10R, offering RAID 0, 1, 5, and 10 support for data redundancy and performance. An additional two SATA 3Gb/s ports are provided by a GIGABYTE SATA2 chip, supporting JBOD. Networking is handled by a reliable Realtek RTL8111C Gigabit Ethernet controller, ensuring fast and stable wired connectivity. Audio is delivered by the Realtek ALC889A codec, providing High Definition Audio with flexible 2/4/5.1/7.1-channel support, offering a rich sound experience for gaming and multimedia.

Real-World Performance & Daily Experience

In its prime, the Gigabyte GA-EP45-UD3R delivered an exceptional daily experience. Paired with a top-tier Core 2 Quad processor and a capable discrete graphics card, it formed the backbone of many high-performance systems. For gaming, the PCIe 2.0 x16 slot provided ample bandwidth for the most demanding titles of the era, ensuring smooth frame rates. Multitasking was a breeze, with the robust memory support and efficient chipset handling numerous applications simultaneously without a hitch. Workflows involving video editing, 3D rendering, or heavy computational tasks benefited immensely from the board's stability and the ability to run CPUs at their peak, often beyond their stock frequencies.

The board's true strength, however, lay in its overclocking prowess. The combination of the P45 chipset, the 6-phase VRM, and the 2oz copper PCB meant that users could confidently push their Core 2 processors to significantly higher clock speeds with remarkable stability. This translated directly into tangible performance gains across all applications, making it a favorite among enthusiasts who enjoyed tweaking their systems for maximum output. The overall user experience was one of reliability and responsiveness, a testament to Gigabyte's meticulous engineering.

Thermals, Power & Platform Longevity

The GA-EP45-UD3R truly shone in its thermal and power management, largely due to Gigabyte's Ultra Durable 3 technology. The 2oz copper PCB effectively dissipated heat away from critical components, leading to lower operating temperatures for the CPU, chipset, and VRM. This not only contributed to greater system stability, especially under heavy loads or during overclocking, but also enhanced the longevity of the components themselves. The efficient 6-phase power design ensured clean and stable power delivery to the CPU, minimizing ripple and noise, which is paramount for maintaining system health and achieving stable overclocks.

For its platform, the LGA 775, the GA-EP45-UD3R represented a pinnacle of development. While the platform has since been succeeded by newer generations, this motherboard offered a robust and long-lasting foundation for users who had invested in Core 2 processors. Its superior build quality and advanced features meant that systems built around it could remain relevant and performant for an extended period, providing excellent value and a solid upgrade path within the LGA 775 ecosystem.

Key Strengths & Trade-offs

• Strengths:
  • Exceptional Overclocking Potential: P45 chipset and robust 6-phase VRM design with Ultra Durable 3 technology enabled impressive and stable CPU overclocks.
  • Ultra Durable 3 Technology: 2oz copper PCB significantly improved thermal dissipation, power efficiency, and overall board longevity.
  • Comprehensive Connectivity: Ample SATA 3Gb/s ports (8 total with RAID support), Gigabit Ethernet, and a good array of USB 2.0 ports.
  • Flexible Expansion: Dual PCI Express 2.0 x16 (x8 electrical) slots for graphics, plus additional PCIe x1 and PCI slots.
  • Solid Audio Solution: Realtek ALC889A codec provided high-quality 7.1-channel audio.
  • DDR2 1200+ (OC) Support: Allowed for high-speed DDR2 memory configurations.
• Trade-offs:
  • DDR2 Memory: While excellent for its time, DDR2 was nearing the end of its lifecycle with DDR3 emerging, limiting future memory upgrade paths.
  • No USB 3.0: As a product of its generation, it lacks native USB 3.0 support, which became a standard in subsequent years.
  • No M.2 NVMe Support: Lacks modern high-speed storage interfaces, relying solely on SATA.
  • No Integrated Graphics Output: Requires a discrete graphics card, as is typical for enthusiast P45 boards.

Pixahunt Buying Verdict

The Gigabyte GA-EP45-UD3R, in its prime, was an undeniably excellent motherboard. It perfectly encapsulated Gigabyte's commitment to quality, performance, and durability, offering a premium experience for the LGA 775 platform. For enthusiasts and power users building a system around Intel's Core 2 processors, it offered a compelling blend of stability, features, and unparalleled overclocking headroom, making it one of the most sought-after P45 boards. Its Ultra Durable 3 technology was a genuine differentiator, providing tangible benefits in terms of thermals and longevity.

Today, as a legacy board, its relevance is primarily for those maintaining or restoring an LGA 775 system. For such a niche, the GA-EP45-UD3R remains a fantastic choice, offering a robust and feature-rich foundation. While it naturally lacks modern amenities like USB 3.0, M.2 NVMe, and DDR3/DDR4 support, its historical significance and the sheer quality of its engineering endure. For anyone looking to experience the pinnacle of the LGA 775 era, or for a reliable replacement in an existing setup, the GA-EP45-UD3R still represents a testament to superior hardware design and a strong recommendation from Pixahunt for its intended purpose.
