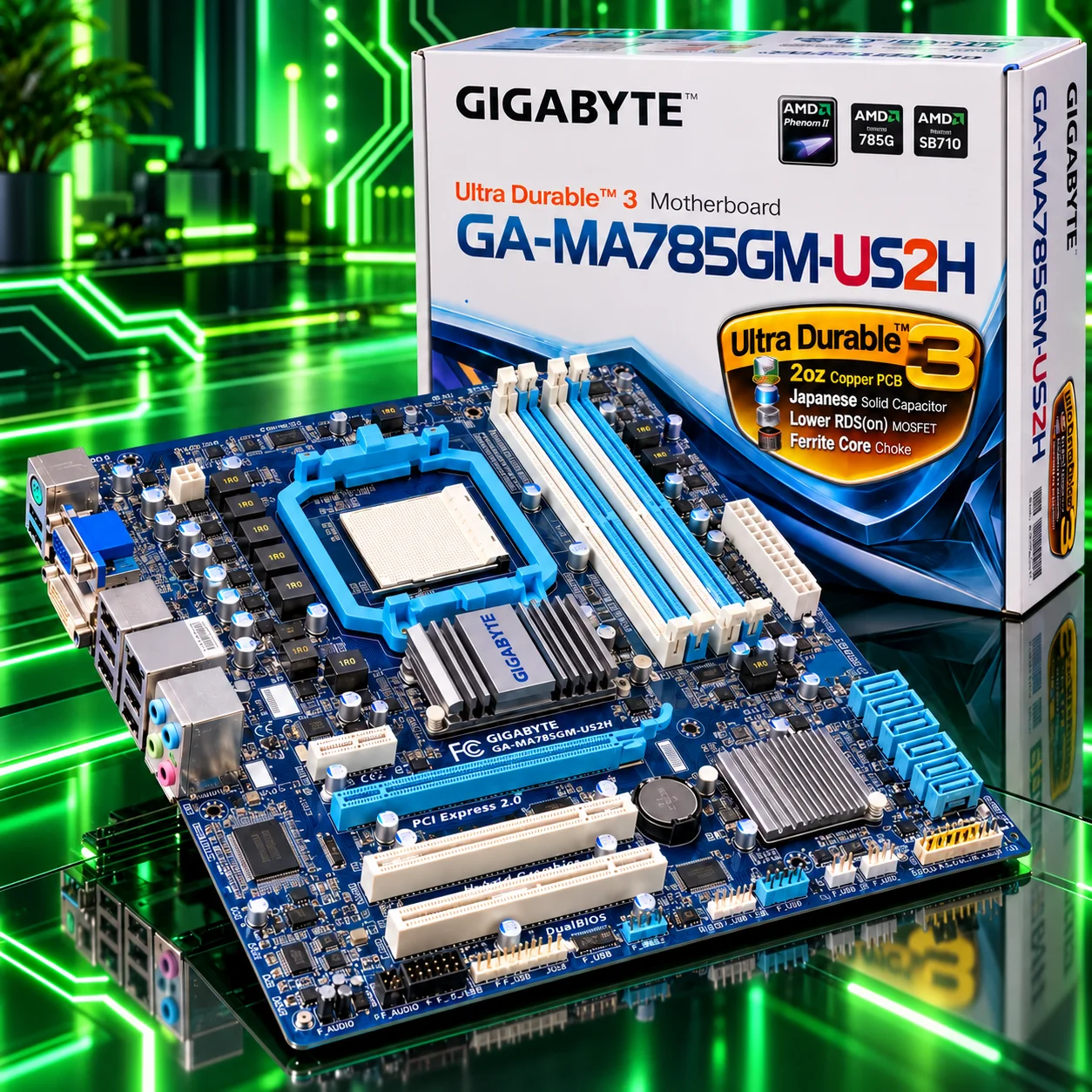

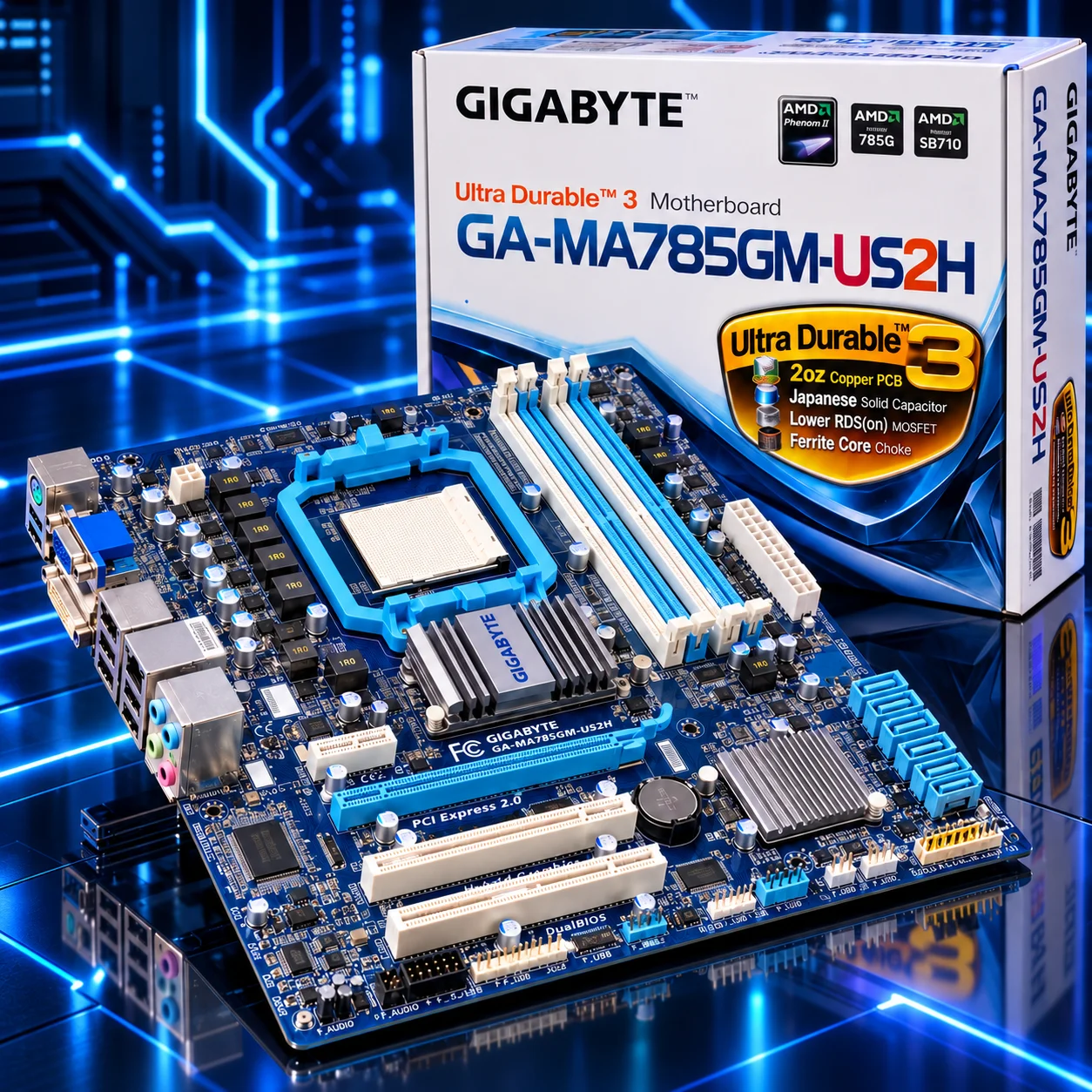

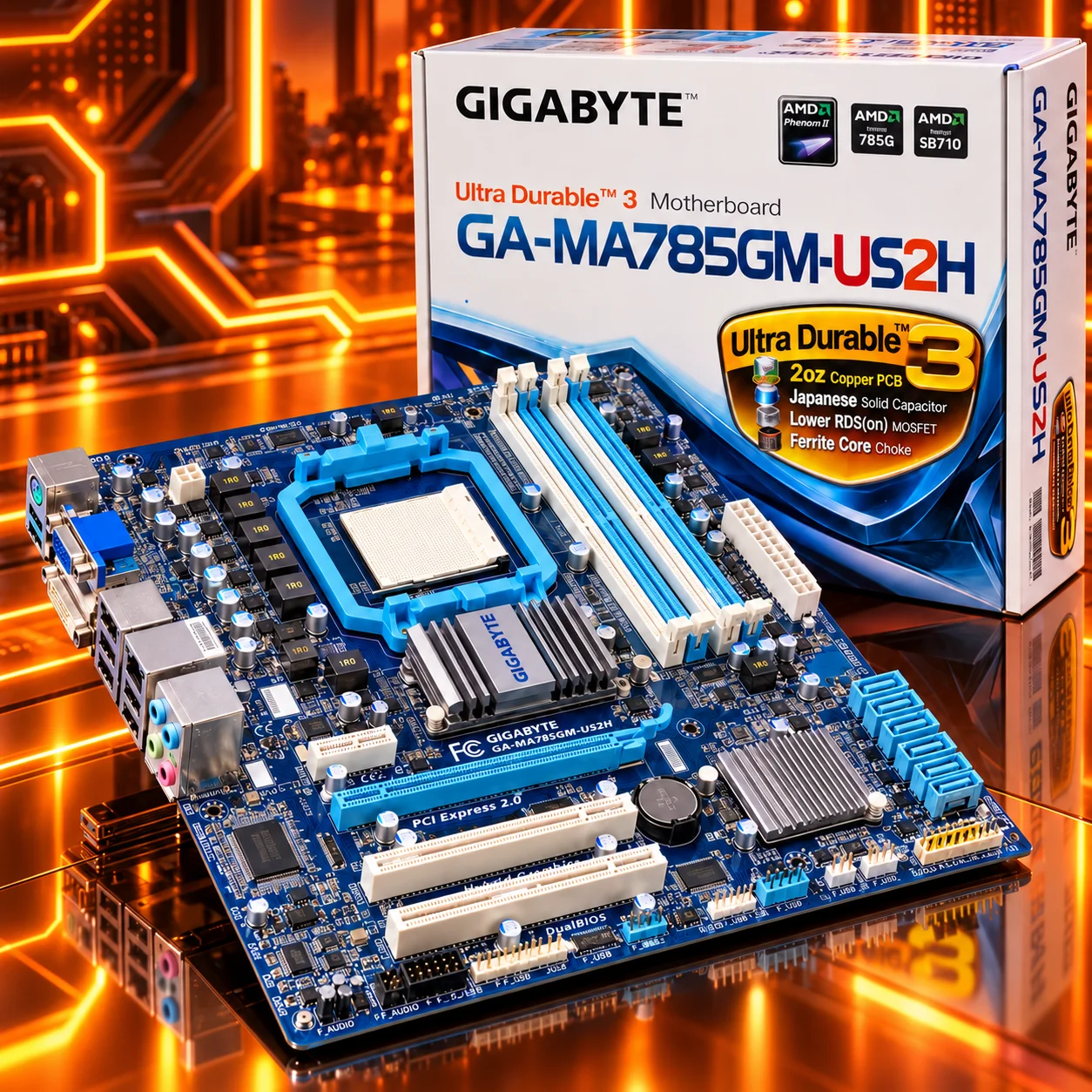

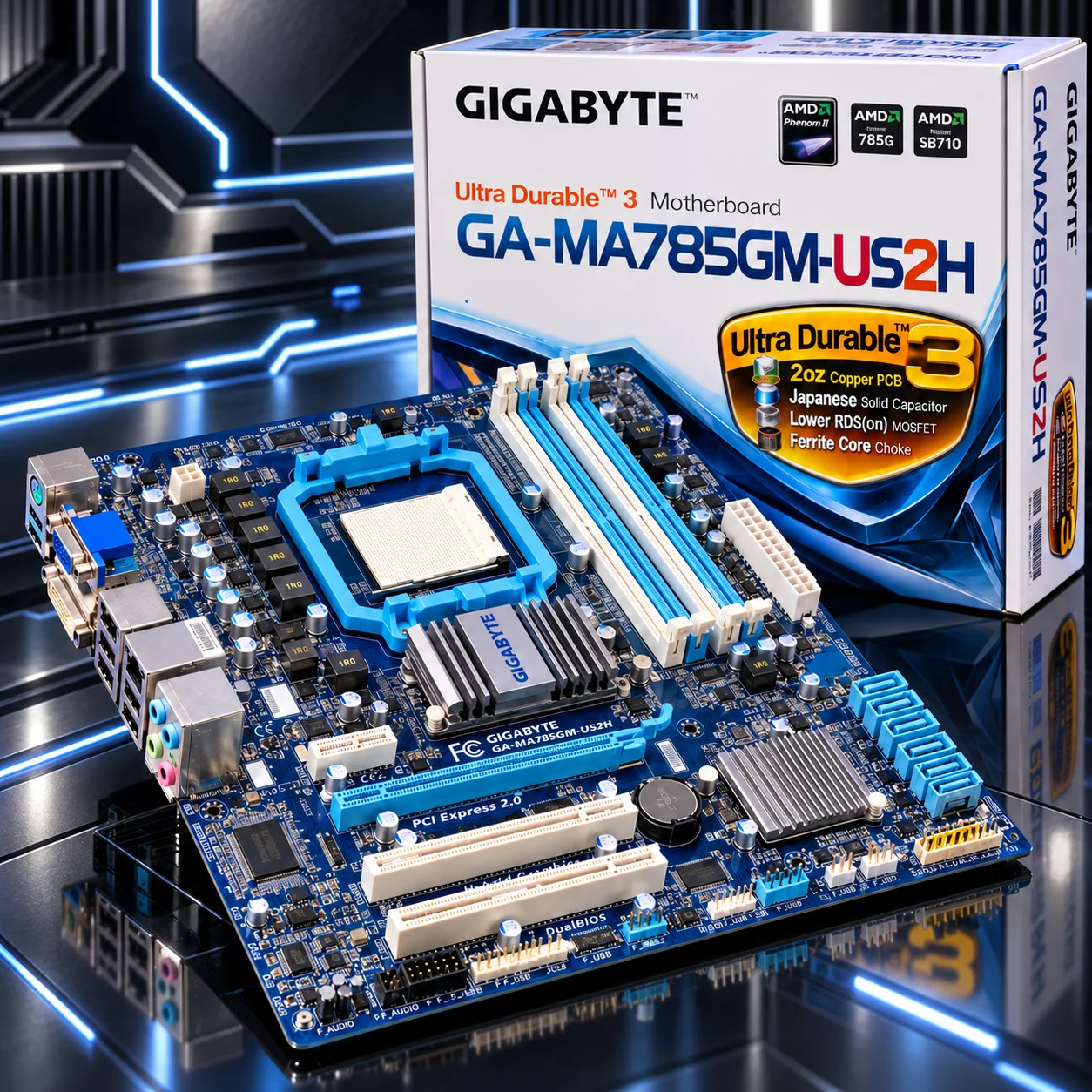

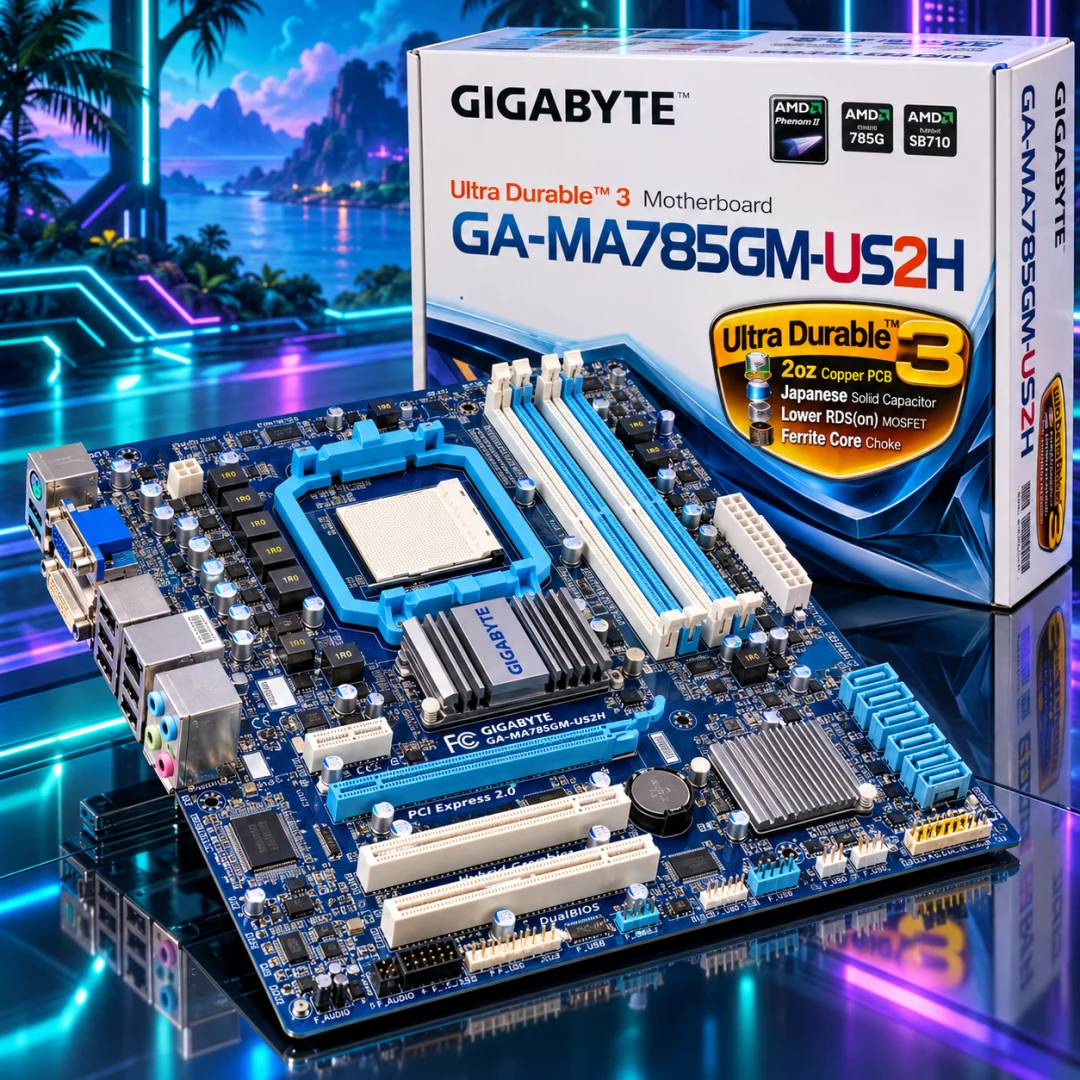

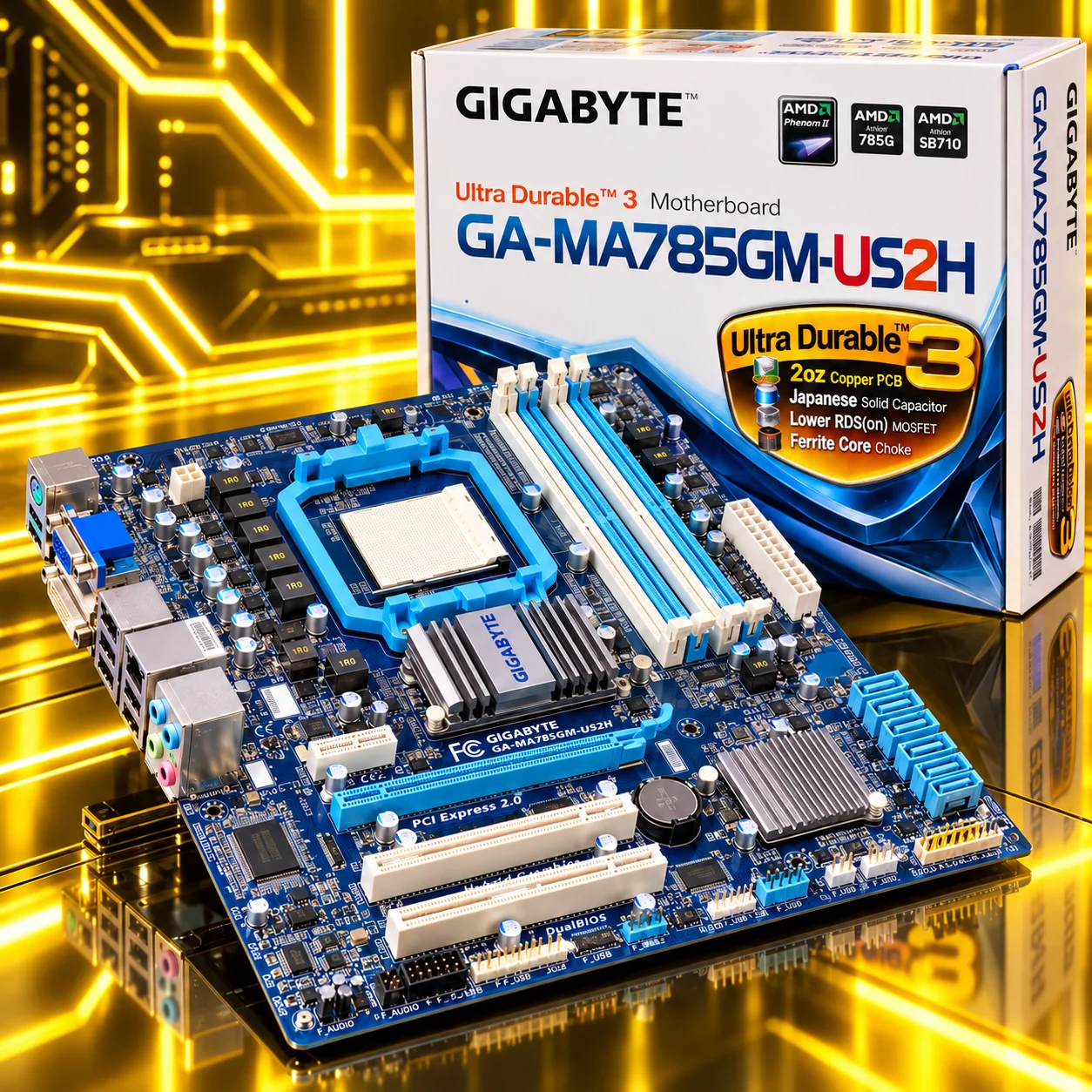

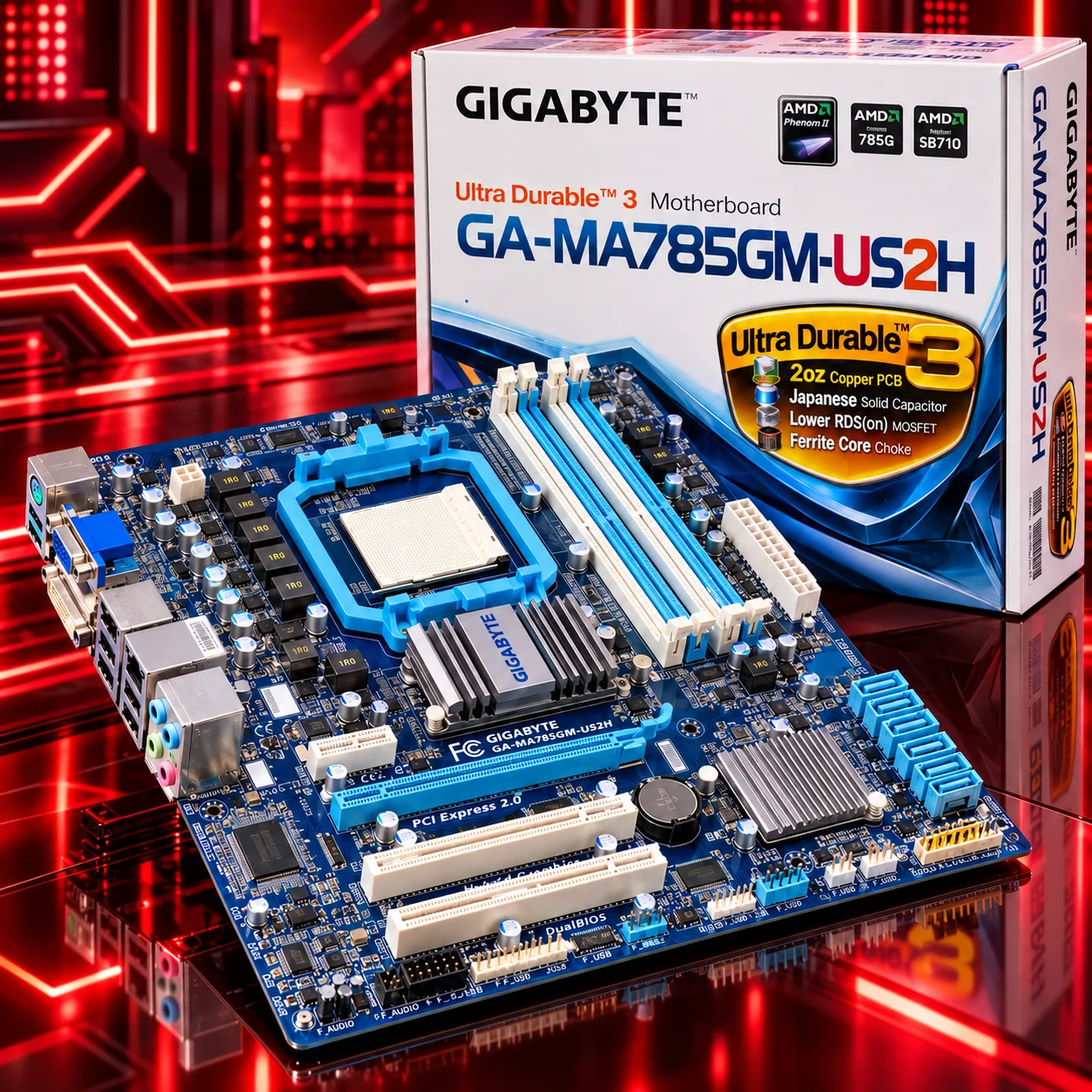

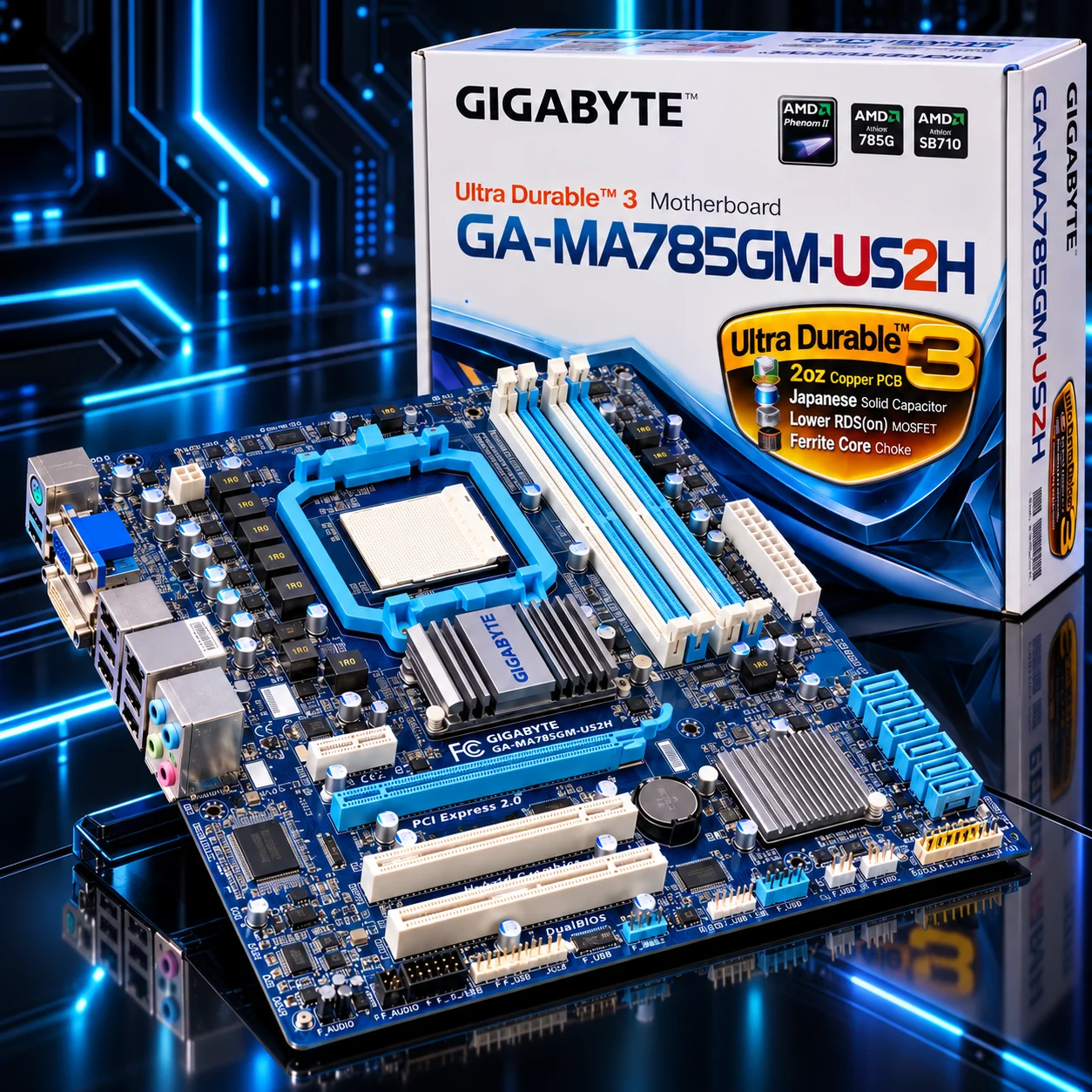

GIGABYTE GA-MA785GM-US2H Motherboard

Introduction & Market Context

In the dynamic landscape of PC hardware, some components stand out for their enduring value and versatility. The Gigabyte GA-MA785GM-US2H, a Micro ATX motherboard from a pivotal era in AMD's platform evolution, is one such example. Launched to cater to the Socket AM2+ and AM3 processor generations, this board was positioned as a robust, feature-rich foundation for budget-conscious builders, HTPC enthusiasts, and users seeking a stable, integrated graphics solution without breaking the bank. At Pixahunt, we recognize the importance of understanding the full scope of a product's capabilities and its place in computing history, and the GA-MA785GM-US2H certainly carved out a significant niche.

Architecture, Cores & Engineering

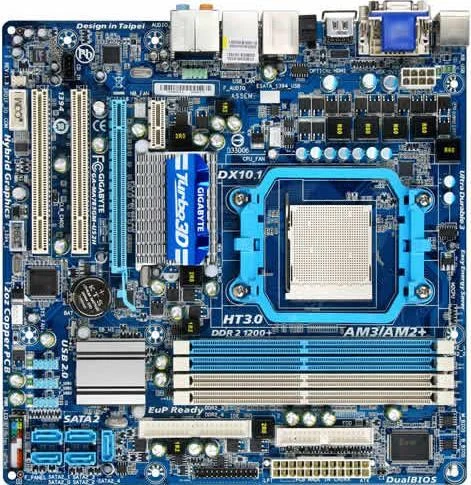

The GA-MA785GM-US2H is built around the formidable AMD 785G North Bridge and AMD SB710 South Bridge chipset combination. This pairing was a sweet spot for integrated graphics performance of its time, with the 785G featuring the integrated Radeon HD 4200 graphics. This GPU offered DirectX 10.1 support and, crucially, AMD's Unified Video Decoder 2.0 (UVD 2.0), making it an excellent choice for smooth, hardware-accelerated HD video playback – a significant advantage for HTPC setups. The Micro ATX form factor (24.4cm x 24.4cm) ensures compatibility with a wide range of compact cases, ideal for space-saving builds.

Processor compatibility is a key strength, supporting both Socket AM2+ and AM3 CPUs, including the popular Athlon II and Phenom II series, providing a flexible upgrade path within its generation. For memory, the board features four DDR2 DIMM slots, capable of housing up to a substantial 16 GB of RAM. It supports speeds up to DDR2 1200(OC), 1066, 800, and 667 MHz in a dual-channel architecture, offering ample bandwidth for multitasking and general computing tasks.

Expansion options include a single PCI Express 2.0 x16 slot for a dedicated graphics card, alongside one PCI Express 2.0 x1 slot and two traditional PCI slots, catering to both modern and legacy peripherals. Storage is handled by five SATA 3Gb/s ports, with the SB710 South Bridge providing robust RAID 0, 1, 10, and JBOD support, a welcome feature for data redundancy or performance enhancement. Networking is managed by a reliable Realtek RTL8111C/D/E Gigabit Ethernet controller, ensuring fast and stable wired connectivity, while high-definition 7.1-channel audio is delivered by the Realtek ALC889A codec, offering a rich sound experience.

Real-World Performance & Daily Experience

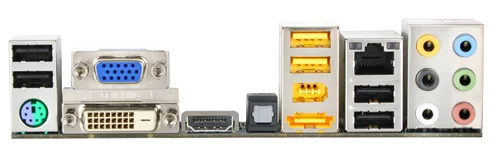

In daily use, the Gigabyte GA-MA785GM-US2H proved to be a steadfast performer for its intended applications. The integrated Radeon HD 4200 graphics, while not a powerhouse for demanding 3D gaming, excelled in its primary role: delivering crisp visuals for desktop applications, web browsing, and most importantly, flawless high-definition video playback. For users building an HTPC, the integrated HDMI, DVI-D, and D-Sub outputs offered exceptional display flexibility, connecting effortlessly to various monitors and TVs.

Paired with a capable AM3 processor like a Phenom II X4, the board provided a solid foundation for productivity tasks, light content creation, and efficient multitasking, especially with its generous 16GB DDR2 memory ceiling. The Gigabit Ethernet ensured quick file transfers and smooth online experiences, while the 7.1-channel audio was more than adequate for multimedia consumption. For those who eventually desired more graphical horsepower, the PCIe 2.0 x16 slot offered a straightforward upgrade path to a discrete GPU, transforming the system into a more capable gaming rig.

Thermals, Power & Platform Longevity

The GA-MA785GM-US2H demonstrates solid engineering in its thermal and power management. The AMD 785G chipset, known for its efficiency, typically runs cool with passive heatsinks, contributing to a quieter system build. The standard VRM power design is robust enough to handle the range of compatible AM2+/AM3 processors without issue, ensuring stable power delivery under various loads. While DDR2 is an older memory standard, the platform's overall stability and Gigabyte's reputation for durable components contribute to excellent longevity.

For its generation, the board offered a compelling balance of features and efficiency. The 3 Years Brand Warranty further underscored Gigabyte's confidence in the product's reliability, providing peace of mind for users. This board was designed for stability and consistent performance, making it a reliable choice for long-term use within its technological context.

Key Strengths & Trade-offs

• Pros:
  • Versatile Display Outputs: D-Sub, DVI-D, and HDMI provide excellent connectivity for integrated graphics.
  • Integrated Radeon HD 4200: Capable graphics with UVD 2.0 for superb HD video playback, ideal for HTPCs.
  • Broad CPU Compatibility: Supports both Socket AM2+ and AM3 processors, offering upgrade flexibility.
  • Generous Memory Capacity: Up to 16GB DDR2, ample for multitasking and general use.
  • RAID Support: SB710 South Bridge enables RAID 0, 1, 10, and JBOD for storage flexibility.
  • Gigabit Ethernet & 7.1 HD Audio: Essential features for a modern multimedia or office PC.
  • Micro ATX Form Factor: Perfect for compact and space-saving system builds.
  • Solid Warranty: A reassuring 3-year brand warranty.
• Cons:
  • DDR2 Memory: An older standard, which can be a limiting factor for future upgrades and component availability.
  • Limited Expansion Slots: Only one PCIe x16 slot, which might restrict multi-GPU or extensive add-in card configurations.
  • No USB 3.0 or M.2: As expected for its generation, but a notable absence compared to newer platforms.
  • Integrated Graphics Limitations: While excellent for HTPC, it's not designed for demanding modern gaming.

Pixahunt Buying Verdict

The Gigabyte GA-MA785GM-US2H stands as a testament to thoughtful engineering from its era. For anyone looking to build a reliable, cost-effective system based on the AM2+ or AM3 platform, particularly an HTPC or a general-purpose office/home PC, this motherboard remains an excellent choice. Its integrated Radeon HD 4200 graphics, comprehensive display outputs, and robust chipset features provide a stable and capable foundation. While its DDR2 memory and lack of modern connectivity like USB 3.0 or M.2 are indicative of its generation, they are not drawbacks for its intended purpose.

At Pixahunt, we recommend the GA-MA785GM-US2H for those seeking to maximize value from the AMD AM2+/AM3 ecosystem. It delivers a balanced blend of performance, features, and stability, making it a smart acquisition for a budget-friendly build that doesn't compromise on essential functionality. It's a prime example of a component that offered significant bang for the buck, and its enduring reliability makes it a worthy consideration even today for specific use cases.
