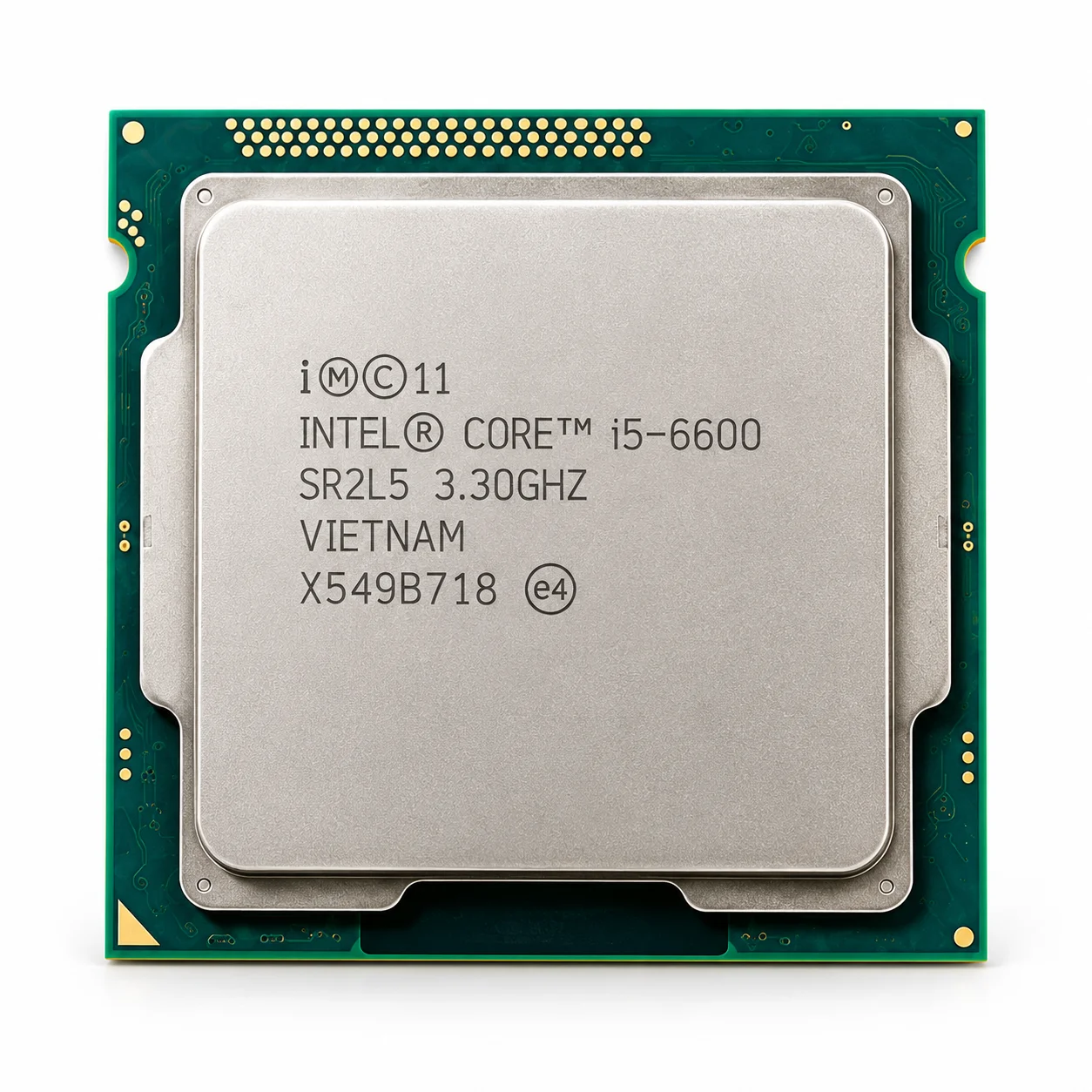

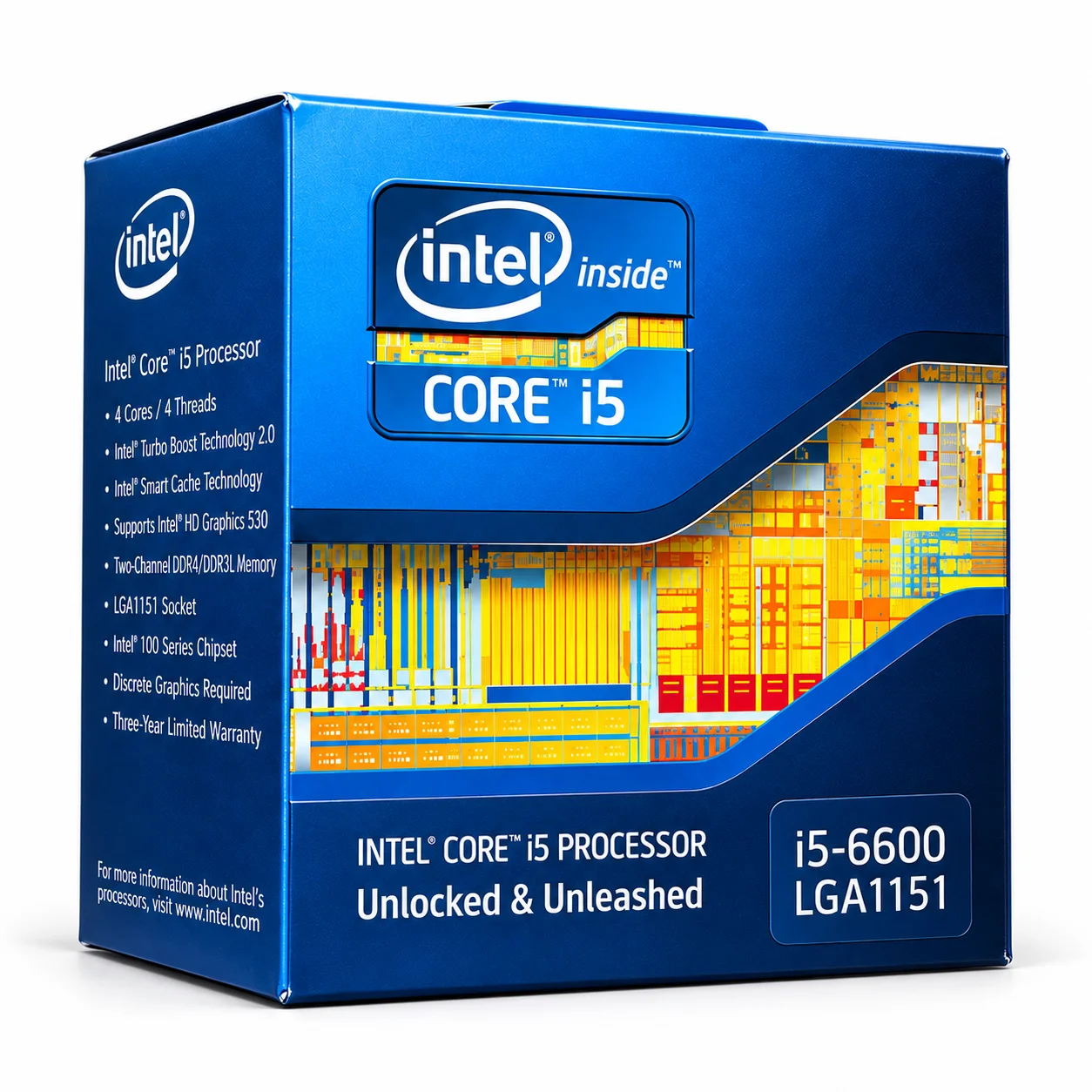

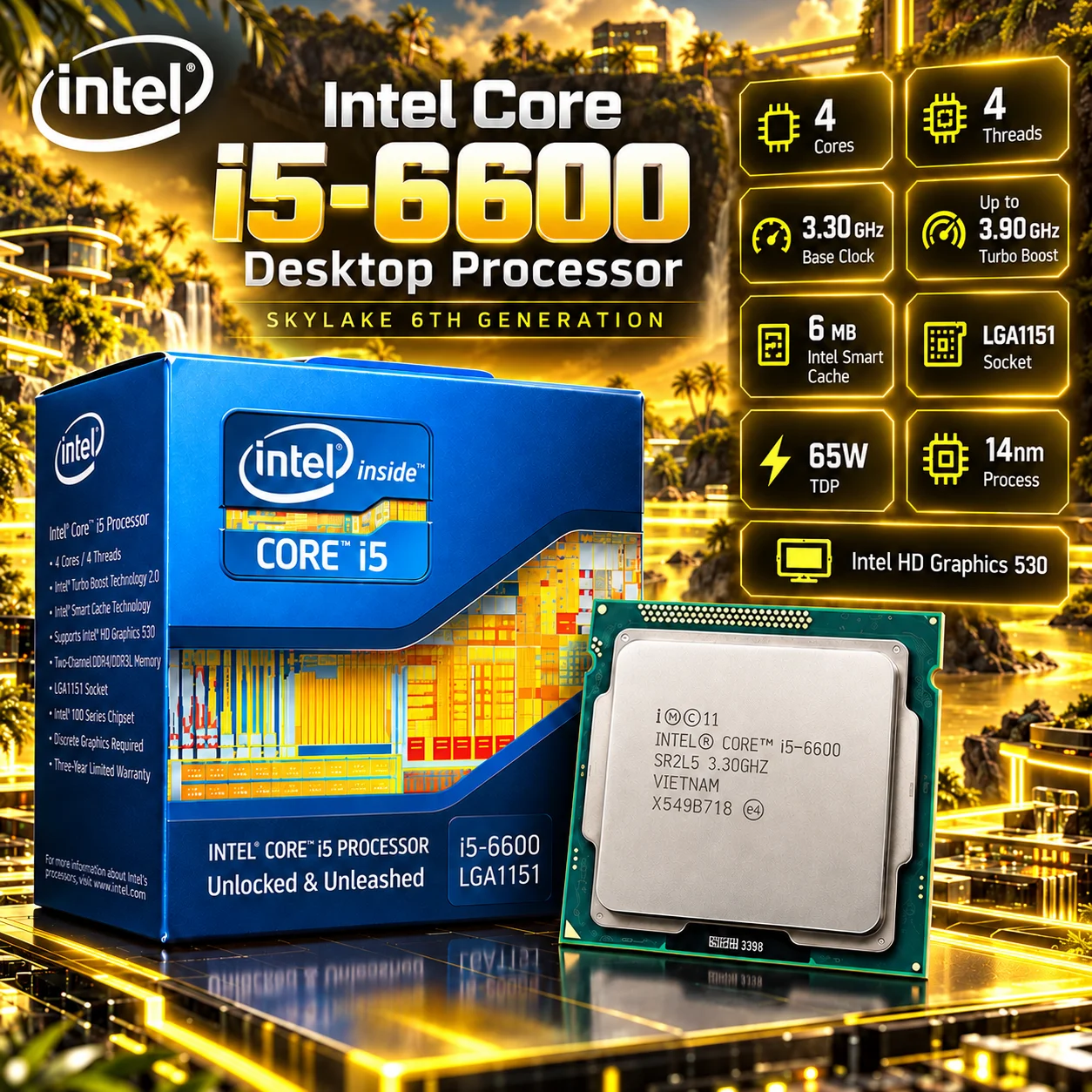

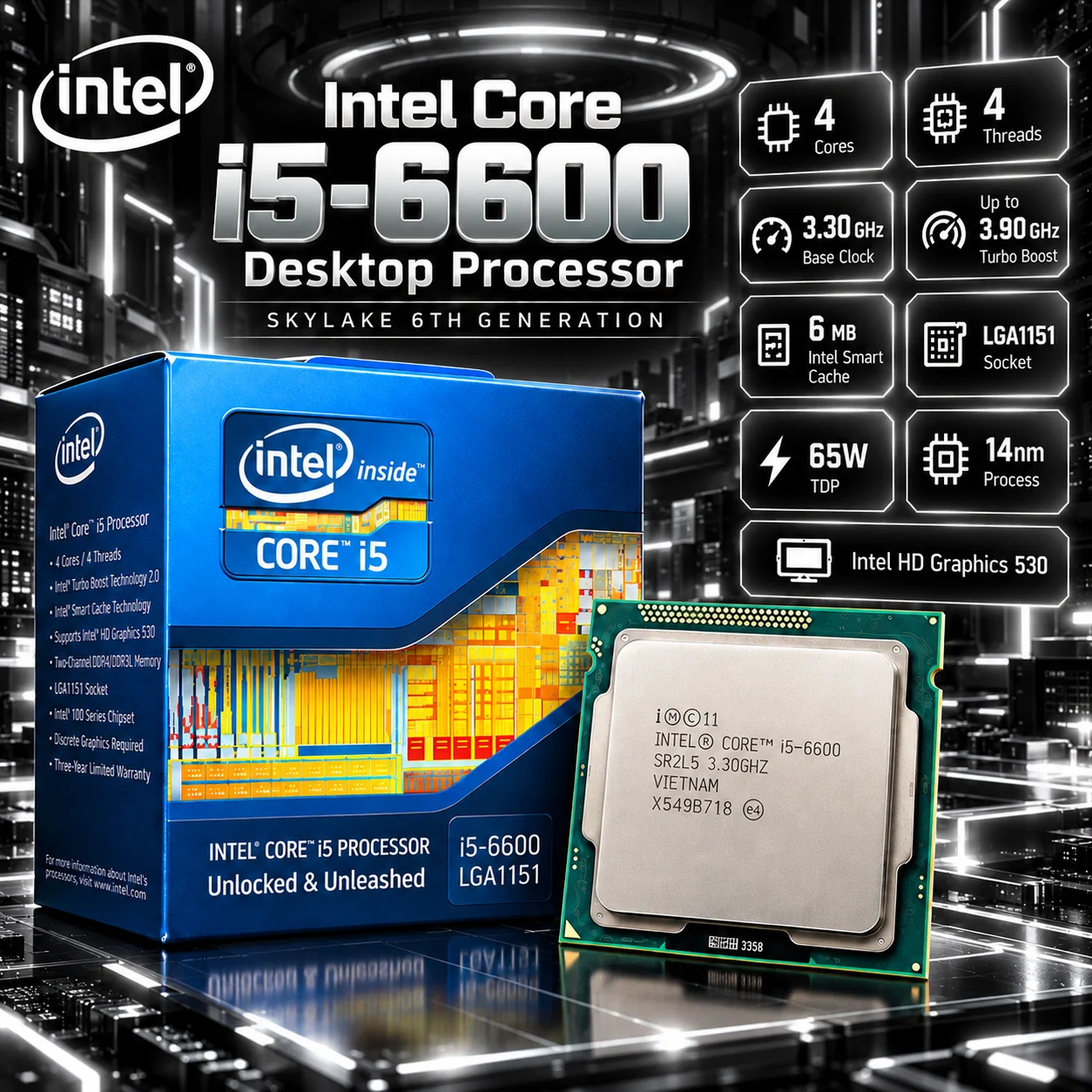

Intel Core i5-6600 4-Core, 4-Thread Desktop Processor
- 4 Cores & 4 Threads with 3.30 GHz Base and 3.90 GHz Turbo Frequency
- 6 MB Intel Smart Cache with efficient 65W TDP
- Integrated Intel HD Graphics 530 supporting 4K UHD playback
- Dual-channel DDR4-2133 and DDR3L-1600 memory support
*Approximate regional retail guide prices. Pixahunt is an informational catalog.
CPU Benchmark Scores & Performance Analysis
TESTEDCinebench R23, Geekbench 6, PassMark CPU Mark scores & real-world gaming/office suitability tests.
Technical Specifications
Comprehensive hardware architecture and specifications
General
| Series |
Core i5
Selected Variant
|
| Model |
Core i5-6600
Selected Variant
|
| Release Date |
September 1, 2015
Selected Variant
|
| Cpu Cooler |
Included
Selected Variant
|
| Code-Name |
Skylake
Selected Variant
|
| Generation |
6th Gen
Selected Variant
|
| Sockets Supported |
LGA 1151
Selected Variant
|
Performance
| Processor Type. |
Desktop Processor
Selected Variant
|
| Base Frequency |
3.30 GHz
Selected Variant
|
| Turbo Frequency Max. |
3.90 GHz
Selected Variant
|
| Core |
4
Selected Variant
|
| Threads |
4
Selected Variant
|
| CPU Cache |
6 MB Intel Smart Cache
Selected Variant
|
| L1 Cache |
256 KB
Selected Variant
|
| L2 Cache |
1 MB
Selected Variant
|
| L3 Cache |
6 MB
Selected Variant
|
| TDP |
65W
Selected Variant
|
| Lithography |
14nm
Selected Variant
|
| Multiplier |
33.0x
Selected Variant
|
| Multiplier Unlocked |
No
Selected Variant
|
Memory Support
| Memory Max. |
64 GB
Selected Variant
|
| Memory Type |
DDR4 / DDR3L
Selected Variant
|
| Memory Speed |
DDR4-1866 / DDR4-2133, DDR3L-1333 / DDR3L-1600 @ 1.35V
Selected Variant
|
| Memory Channel |
2 (Dual Channel)
Selected Variant
|
| Max Memory Bandwidth |
34.1 GB/s
Selected Variant
|
| ECC Memory Supported |
No
Selected Variant
|
Graphics
| Built-in GPU |
Yes
Selected Variant
|
| Processor Graphics |
Intel HD Graphics 530
Selected Variant
|
| Graphics Base Frequency |
350 MHz
Selected Variant
|
| Graphics Dynamic Frequency |
1.15 GHz
Selected Variant
|
| Graphics Core Count |
24 EUs
Selected Variant
|
| Max Video Memory |
64 GB
Selected Variant
|
| Max Resolution |
DP: 4096 x 2304 @60Hz
HDMI: 4096 x 2160 @24Hz eDP: 4096 x 2304 @60Hz Selected Variant |
Technical Info
| DirectX Support |
12
Selected Variant
|
| OpenGL Support |
4.5
Selected Variant
|
| Approx. Power Consumption |
65W
Selected Variant
|
| Compatible Products / Chipsets |
Intel H110, B150, H170, Z170, Q170, B250, H270, Z270
Selected Variant
|
| PCI Express Version |
PCIe 3.0
Selected Variant
|
| PCI Express Lanes |
16 Lanes
Selected Variant
|
| Thermal Solution (MPK / Box) |
Intel E97379 Stock Cooler
Selected Variant
|
| Max. Operating Temperature (Tjmax) |
71°C (Tcase)
Selected Variant
|
Warranty
| Manufacturing Warranty |
3 Years Brand Warranty
Selected Variant
|
Additional Info
| Specialty |
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x & VT-d) Intel vPro Platform Eligibility Selected Variant |
| Others |
OS Support: Windows 11 (unsupported), Windows 10/8.1/7, Linux
Instruction Set: 64-bit, AVX 2.0, SSE4.1, SSE4.2, AES-NI Selected Variant |
| Country Of Origin |
USA
Selected Variant
|
| Made in/ Assemble |
Malaysia / Vietnam
Selected Variant
|
Editorial Overview & Review
In-depth insights, architecture summary, and performance evaluation
Architecture and Foundation
The Intel Core i5-6600 is powered by Intel's 14nm Skylake microarchitecture, representing a major milestone with the introduction of the LGA 1151 socket and widespread adoption of DDR4 memory. Operating with 4 physical cores and 4 threads, it features a native base frequency of 3.30 GHz and dynamically clocks up to 3.90 GHz utilizing Intel Turbo Boost 2.0 technology.
Integrated Media Engine
Featuring integrated Intel HD Graphics 530, the i5-6600 effortlessly handles 4K UHD video output across modern interfaces including DisplayPort and HDMI. The graphics engine incorporates 24 execution units and provides hardware acceleration for HEVC decoding, making it well-suited for general home entertainment, office multi-display setups, and light graphical workloads without dedicated graphics cards.
Platform and Memory Capabilities
The processor supports both low-voltage DDR3L and contemporary DDR4 system memory up to a maximum capacity of 64 GB in dual-channel configurations. With 16 PCI Express 3.0 lanes directly tied to the CPU and an energy-conscious 65W thermal design power (TDP), the Core i5-6600 offers exceptional thermal stability and extensive chipset compatibility across Intel 100-series and 200-series motherboards.
